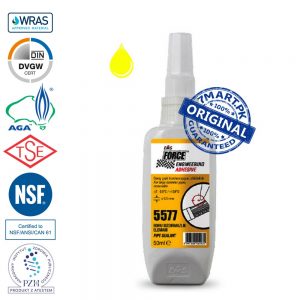

EMS FORCE 5577 50ml Pipe Sealant

Magnaflux Pie Gauge Field indicator, Part # 169799, Made in UK

Magnaflux Pie Field Indicator

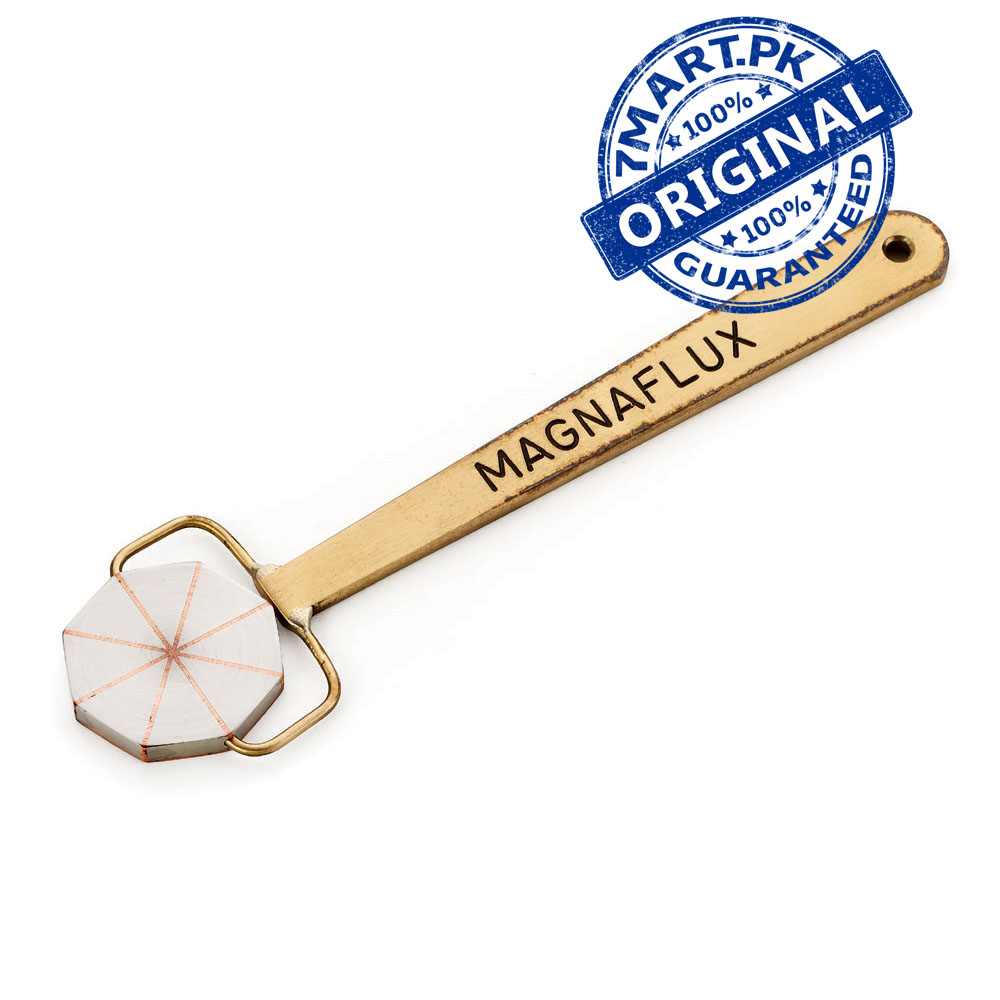

The Magnaflux Magnetic Pie Field Indicator, also known as a pie gauge, is a device used as an aid in determining the direction of magnetic field for detection of discontinuities in ferrous materials. It is an octagon shaped piece made with a low retentive steel surface having eight bonded slices, similar to pieces of pie. The octagon shaped piece is mounted on a handle so the inspector can place it on the part in the area being magnetized.With an adequate amount of magnetizing current and proper particle application, the pie gauge will show indications in the same direction natural indications would appear.
Specifications Compliance:

  • ASME BPVC
  • ASTM E709
  • ASTM E1444

Part # 169799
Made in UK
Quantity: One Piece

In Stock

Request A Quote
Compare

Magnetic field indicators

This range of field indicators is to help you check and measure magnetic field strength and direction during the magnetic particle inspection process. They provide flexibility in measuring residual part magnetism, field direction and AC/DC field strength in mag particle testing applications.

Calibrated Field Indicators :

  • Rugged, pocket-size meters used to indicate residual magnetism remaining in part after magnetisation. Certification is provided.

Non-calibrated Field Indicator :

  • Rugged, pocket-size meters used to indicate residual magnetism remaining in part after magnetisation. Inexpensive, disposable, non certified field indicator.

ASME Field Indicator :

  • Use the ASME Field Indicator to gauge the strength and direction of your magnetic field. Designed in accordance with ASME Boiler and Pressure Vessel Code Section V, Article 7.

Applications

Ideal Application : Check and measure magnetic field strength and direction, and residual part magnetism during the inspection process
